conveying system

Conveying systems are essential tools in various industries like manufacturing, mining, and food processing for the efficient and safe transport of materials. Our range includes Tubular Conveying Systems, Pneumatic Conveying Systems, Dosing & Conveying Screws, Flexible Screw Conveyors, and Screw Feeders, each designed to meet specific operational needs. The Tubular Conveying System is ideal for transporting materials through enclosed tubes, preventing contamination and dust emissions. The Pneumatic Conveying System uses air pressure to move powders, granules, and other lightweight materials, offering a clean and efficient solution for sensitive materials, especially in food and pharmaceutical industries. Dosing & Conveying Screws are precision devices used for controlled material feeding, ensuring accuracy and consistency in production processes.

Each system is designed for durability and reliability, offering versatility across industries such as food & beverage factories, manufacturing plants, and mining operations. The Flexible Screw Conveyor provides a flexible solution for materials that need to be transported at various angles and is ideal for applications with space limitations. Screw Feeders ensure precise metering of materials into processes with adjustable flow rates. Our systems are built to handle capacities ranging from low to high throughput, ensuring seamless operation with **minimal downtime. Powered by reliable motors and constructed from high-quality materials like stainless steel and carbon steel, these conveyors guarantee long-lasting performance, with a 1-year warranty to ensure customer satisfaction.

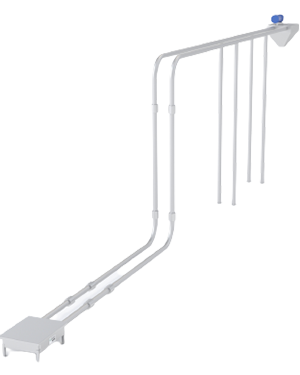

Tubular Conveying System

Tubular cable conveyors (also known as Disc Conveyors and Drag Conveyors) gently slide bulk materials through smooth stainless steel tubing using low-friction polymer discs attached to stainless steel cable. The discs and cable are driven by a wheel at one end of the circuit, and put under tension by a wheel at the other end. This design allows single or multiple inlets and outlets, and the routing of conveyor tubing horizontally, vertically or at any angle, through small holes in walls or ceilings. Because components are modular, inlets and outlets can be added, removed or relocated, and the circuit lengthened, shortened or re-routed as needs change.

  • Application : Food & Beverage, Chemical, Commodity, Machinery & Hardware
  • Applicable industries : Building Material Shops,
    Machinery Repair Shops, Manufacturing Plant,
    Food & Beverage Factory, Construction works,
    Energy & Mining
  • Material : Stainless Steel
  • Power (W) : 0.4kW - 22kW, 3KW
  • Dimension : 50-500mm
  • Material Feature : Heat Resistant
  • Conveyor distance : up to 1000mm
  • Core Components : Motor
  • Chain wheel speed : 8-20 r/min
  • Warranty : 1 YEAR

Pneumatic Conveying System

The Pneumatic transport system consists of vacuum pump, vacuum hopper, reverse pulse cleaning system, pneumatic valve, flexible tube and other accessories.

The vacuum charger is to move the suspended material as tablet, capsule in a uniform flow relatively from a power station or power supply to a delivery point. The vacuum, generated by a vacuum pump or fan, creates a high speed of sufficient air and solids for the ratio of air low enough to move the material effectively.

  • Application : Manufacturing Plant, Food/Beverage Factory & Energy
  • Applicable industries : Building Material Shops, Manufacturing
    Plant, Construction works , Energy & Mining
  • Material : Carbon Steel
  • Power (W) : 36.7KW
  • Dimension(L*W*H) : 10m*5m*8m
  • Material Feature : Heat Resistant
  • Conveyor Distance : 40mm
  • Core Components : Pressure vessel,
    Motor, Pump, Gearbox
  • Warranty : 1 YEAR

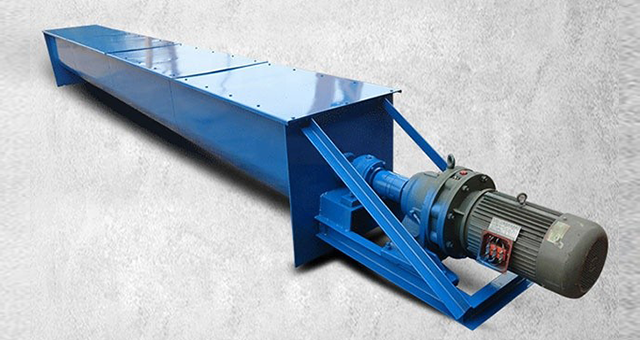

Dosing & Conveying Screws

The screw conveyor is of simple structure, low marking cost, strong sealing, safe, convenient operation and other advantages, it allows multiple inlets and outlets. It is widely used in various industrial department(such as building materials, chemicals, electric power, metallurgy, coal, mine, food and other industries)to convey powder, granular and lump material, such as, coal, ash, slag, cement, food, etc.

The temperature of material is less than 200°C. Screw conveyor is not suitable for transporting those material which is perishable, with big viscous and easy caking. In the concrete mixing plant screw conveyor's effect reflected to the fullest.

  • Application :
    Screw conveyor is relying on a spiral blade shaft in the trough of closed continuous rotation in order to impel the loss of material moving. At this time, the material are like the bolt, in spinning along the axial moving forward gradually, finally discharging mouth off.
  • Applicable industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works, Energy & Mining
  • Material: Carbon Steel
  • Power (W): 0.75-45KW Accordingly
  • Dimension (L*W*H): Accordingly
  • Material Feature: Heat Resistant
  • Conveyor distance: up to 40m
  • Core Components: Motor
  • Warranty: 1 YEAR

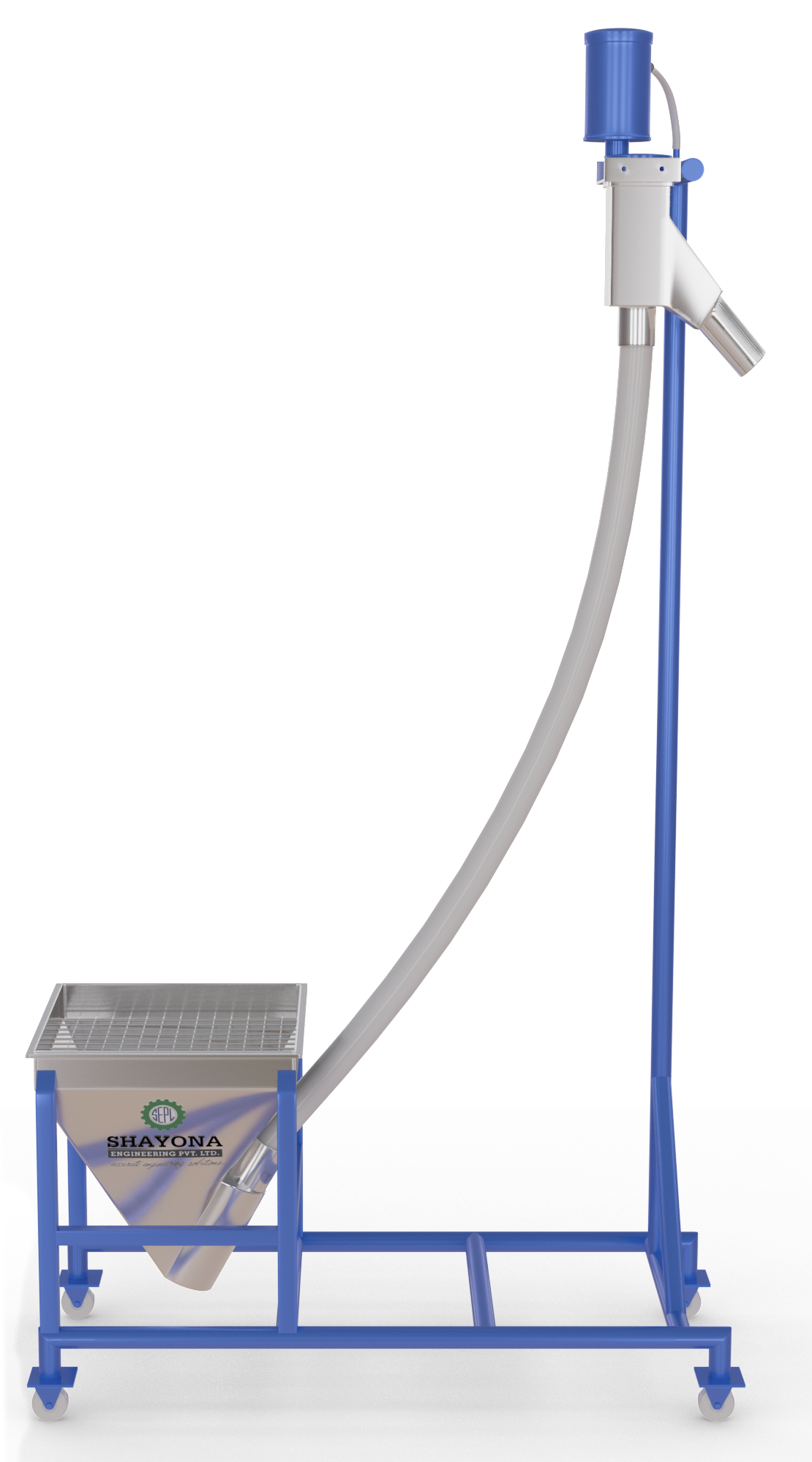

Flexible Screw Conveyer

The screw conveyor is of simple structure, low marking cost, strong sealing, safe, convenient operation and other advantages, it allows multiple inlets and outlets. It is widely used in various industrial department(such as building materials, chemicals, electric power, metallurgy, coal, mine, food and other industries)to convey powder, granular and lump material, such as, coal, ash, slag, cement, food, etc.

The flexible screw conveyor is totally sealed during operation and no air is used as conveying medium.The conveying system can be easily dismantled for cleaning and soft tube takes up little or no floor space within your facility.The Flexible screw conveyor is made by stainless steel and mirror polished. No dead corners for cleaning.

  • Applicable : Manufacturing Plant, Food/Beverage Factory & Energy
  • Applicable industries: Food & Beverage Factory, Chemical Factory
  • Material: Stainless Steel
  • Power (W): 1.5-5.5kw
  • Dimension (L*W*H): 1300x600x1800mm
  • Material Feature: Heat Resistant
  • Conveyor distance: 1-6m
  • Core Components: Motor, Bearing, Gear
  • Warranty: 1 YEAR

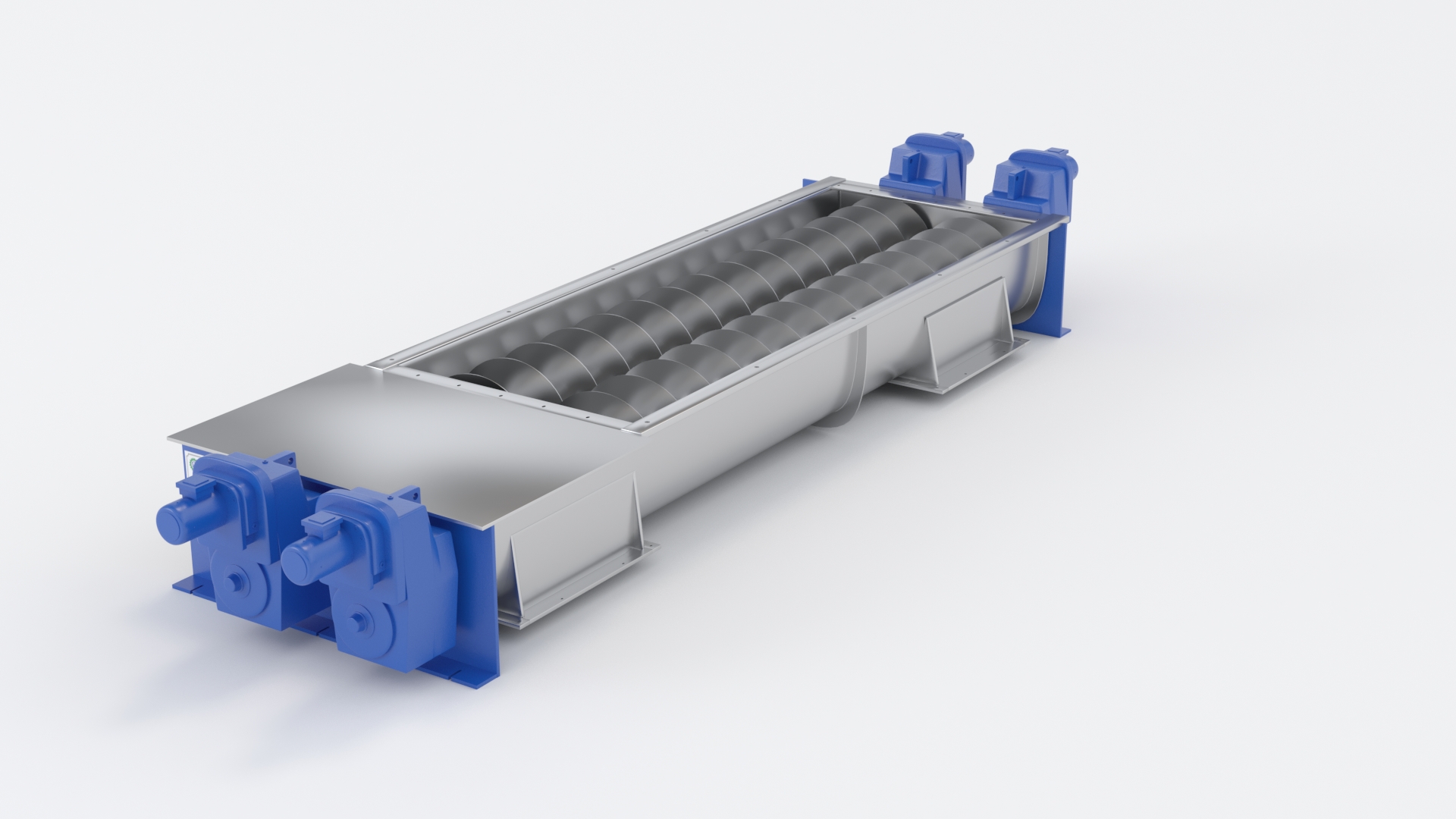

Screw Feeders

Heated screw conveyor machine are spiral bulk material transportation systems that convey raw ingredients to and from processing areas that are on different levels of a facility. These conveyors can horizontal transport materials, also it can slanted at different angles to economically elevate and convey materials up and down floors. They require ample space and an increased amount of power to lift the material, depending on the steepness of the angle.

  • Application :
    Powder, Coal, Grain, Sand
  • Applicable industries : Manufacturing Plant,
    Construction works , Energy & Mining
  • Material : Stainless Steel
  • Power (W) : 4.6-25.9kW
  • Dimension (L*W*H) : as per Order
  • Material Feature : Heat Resistant
  • Screw Diameter : 630mm
  • Core Components : Motor
  • Warranty : 1 YEAR
